The "BP Series" Amplifiers are designed with our “Live, Loud and Play Hard” motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. The BP800.4V2 is Class A/B designed with a minimum per channel impedance operation of 2 Ohm. All BP Series amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant. This ensures that no competition can stand up to the Massive Audio BP Series amplifiers when it comes to features, performance and value.



FEATURES

• Built-In OEM Line Converter
• 2 Ohm Stable Design
• Mil Spec PCB with SMD parts
• Built-in Noise Reduction Circuitry
• Full MOSFET with High Grade Switching Devices
• Built-In Auto Sensing Turn On Function (Hi-Inputs)
• 12V Remote Output for External Devices (Hi-Level Inputs)
• 0dB ~ 12dB Bass Boost
• Next Generation Advanced 5 Way Protection Circuitry
• World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)



SPECIFICATIONS

Peak Output Power @ 14.4V	200W x 4
1 Ohm RMS	n/a
2 Ohm RMS	120W x 4
4 Ohm RMS	60W x 4
4 Ohm Bridged	240W x 2
Input Level	0.2~9.0v
Freq. Response	10Hz~35KHz
THD at 4 Ohm Load 30% Rated Power	<0.1%
S/N Ratio	>90dB
Bass Boost	0~6dB/12dB (45Hz)
Minimum Load	2 Ohm Stereo
Gain Remote	n/a

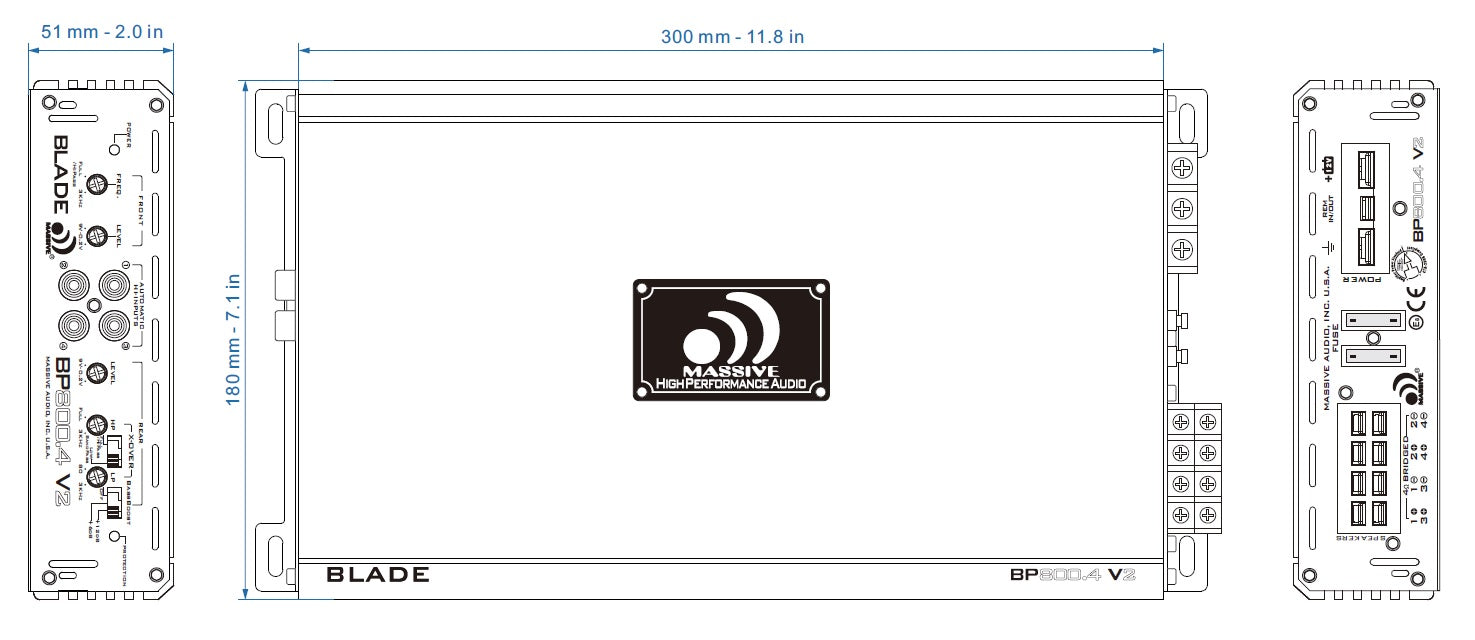

Dimensions	2"H x 7.1"W x 11.8"L
