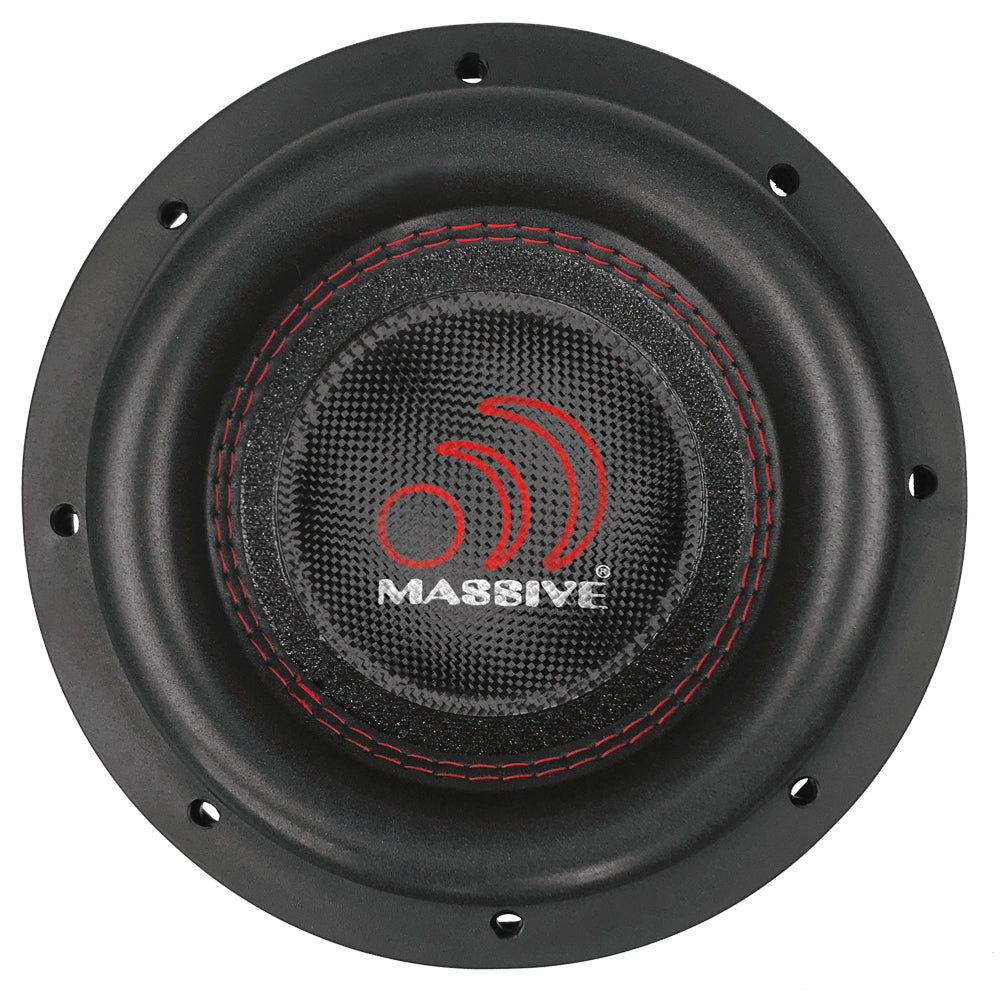

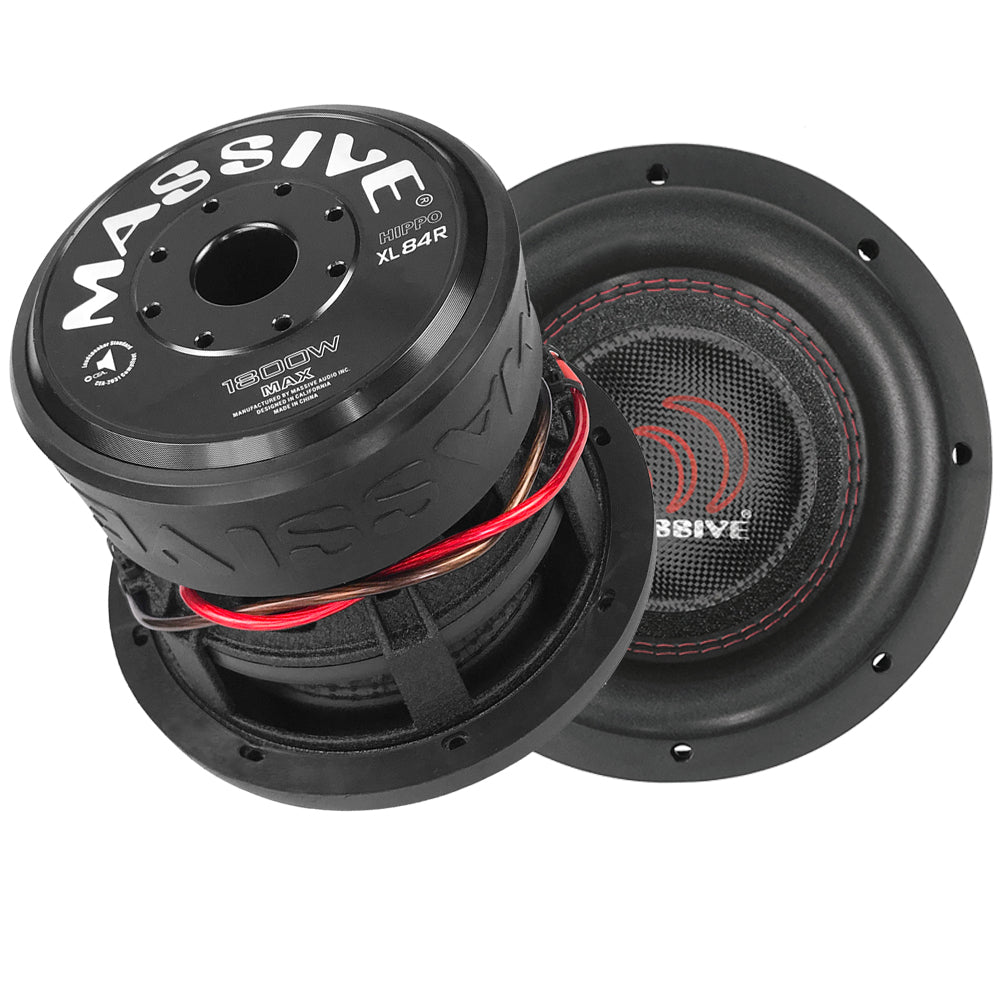

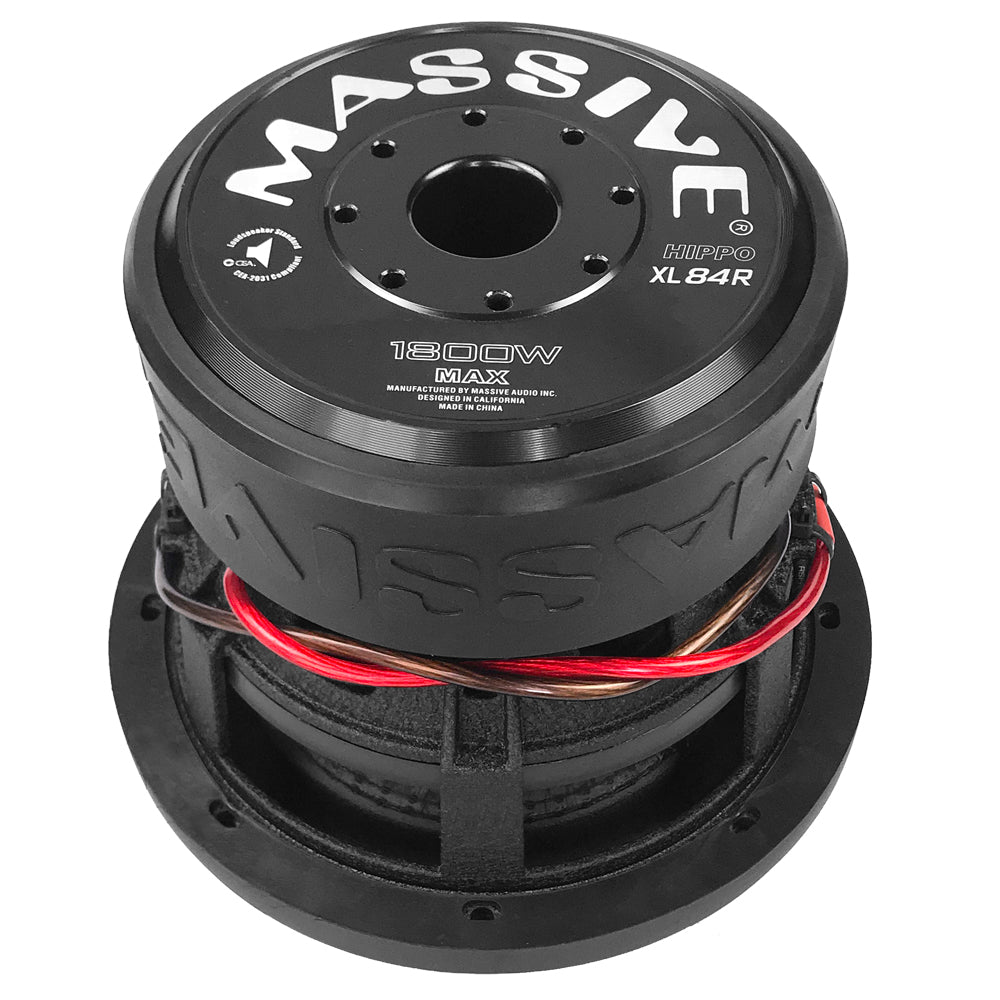

The 2019 GeekWrapped 'best product in category' winner; Hippo XL 84R is a CEA 2031 Certified Subwoofer apart of the current wildly popular HIPPOXL Series Subwoofers. Big Bass with a Big Bottom! The XL84R is Dual 4 Ohm, 900 RMS 1800 Max and uses a high temp 2.5” Aluminum VC, 120oz stacked Strontium Magnets with tight Red stitching that’s sewn through Kevlar Fiber Non-Pressed Paper Cones.
FEATURES:
Heavy Duty, Rugged Industrial Textured Cast Aluminum Basket
High Energy Double Stack Strontium Magnet Structure
Dual Impedance High Temp Aluminum 2.5” Voice Coil Former with Kevlar Spunlace
Kevlar Fiber Reinforced Non-Pressed Paper Cone with Industrial Textured Finish
Red Stitched Edge to the Cone’s Edge for Added Strength
Over Sized Mirror Image Dual Poly / Nomex Spiders
Black Anodized One Piece Pole-Plate for Added Motor Force
Heavy Duty Direct Input Wires Connection to Voice Coils
Reinforced Fiberglass Woven Dust cap for High Power Applications
Custom Tooled Rubber Gasket and Magnet Boot
SPECIFICATIONS:
*T/S Parameters on website supersede user manual specifications
Size
8"
Peak Watts
1800
RMS Watts
900
Cone
Non-Pressed Paper
Voice Coil
2.5" Dual 4 Ohm
Surround
Tall and Narrow Foam
Magnet
120oz Strontium
Terminals
Heavy Duty Direct Input Wires Connection
Basket
Cast Aluminum
Tinsel Leads
Heavy Duty Triple
X-Max
17.5mm
SPL
78.58dB
Ported Box
12"H x 11"D x 11"W (Round Port 3" x 8")
Sealed Box
1.1 ft3
Fs
46.2 Hz
Re
3.6 Ohms
Le
6.12 mH
BL
27.99 Tm
Qms
7.98
Qes
0.446
Qts
0.422
Vas
14.22L
Cms
0.0356 mm/N
Mms
334.4g
Sd
530 sq cm
Vd
0.927L
*T/S Parameters on website supersede user manual specifications
