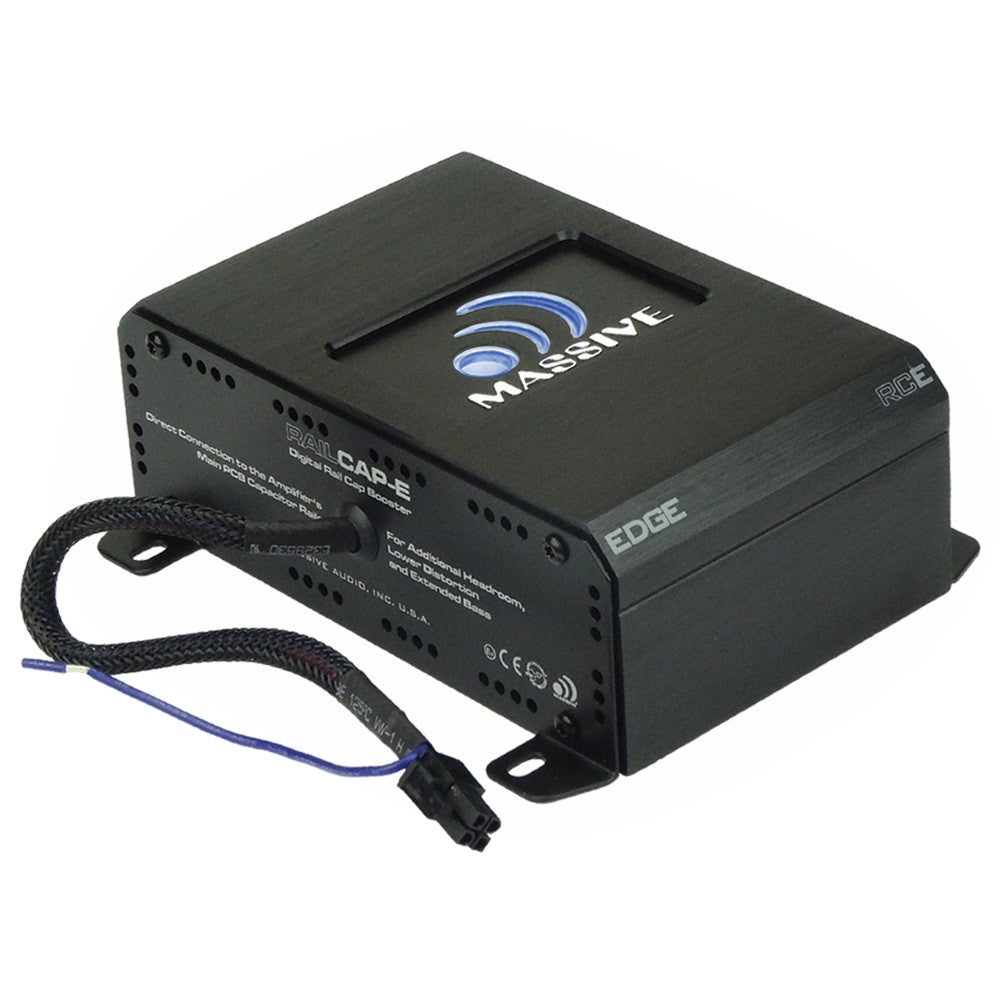

All NEW 8 “EDGE” Series Amplifiers use famous Nano Block Military speck circuit board and “N” drive MOSFET power supplies to ensure performance but they now have several new cutting edge features like RCA inputs that can take RCA or Speaker levels at up to 10 Volts in! This built in money saving OEM line converter is found in every “EDGE” model, and each E4 model uses a DC off set music sensing system to activate the ATO (Auto Turn On). Other new precision audio features found in all mono models include, an adjustable 1 band parametric EQ with up to 12 Db bass boost, a switchable 12V Out terminal, a preparatory docking input for optional custom matching Massive Audio 4 farad “Rail CAP” capacitor and on all 2, 4 & 5 channel amp crossovers adjusts to an X10 switch, which means, that “EDGE” can be programmed as a high pass or a low pass at 3K Hz adjustable Up or Down or even Band Passed enabling the use with raw drivers for more output control.
Remember: Massive Audio “EDGE” is Very Sharp and should be played with caution
“We Were Born Massive……. But We’re Still Growing!”
|RMS Power||800w x 1|
|PEAK Power||1600w x 1|
|RMS @ 2 Ohms||400w x 1|
|Min Impedance||1 Ohm|
|Min Ohm Bridged||n/a|
|THD||<0.3% @ 4 Ohm|
|Max RCA Voltage||5v|
|Freq. Response||10Hz - 220Hz|

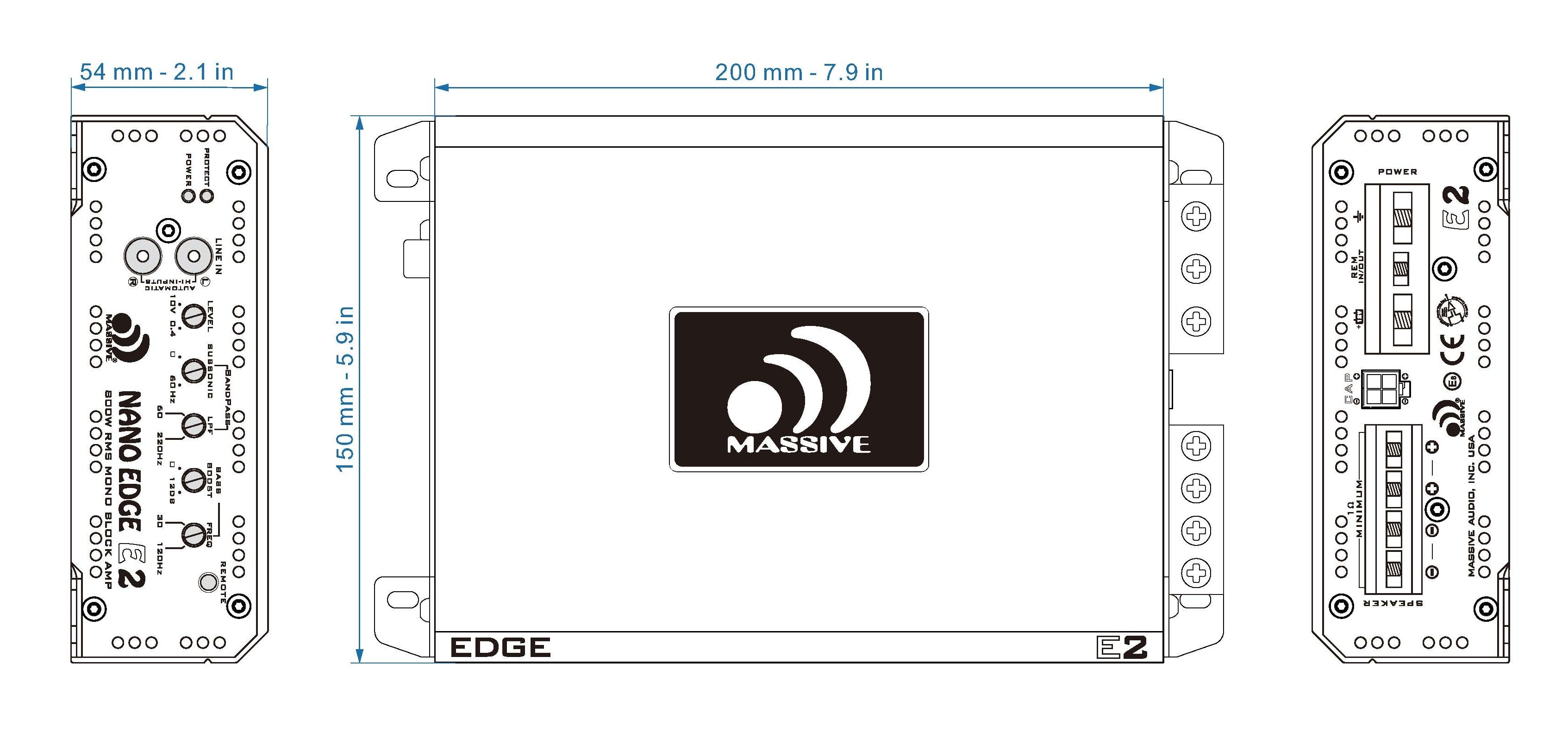

|Dimensions||8.0 (in) x 5.9 (in) x 2.1 (in)|
|Bass Remote||UR1 (Optional)|
Can you link two e2's together?
There is not a seperate RCA to enable a link although most installers that use 2 of them will gain match and run them independently which is much better and less strain on the 2nd amp.
