All NANO EDGE Series Amplifiers use famous Nano Block Military speck circuit board and “N” drive MOSFET power supplies to insure performance but they now have several new cutting edge features like RCA inputs that can take RCA or Speaker levels at up to 10 Volts in! This built in money saving OEM line converter is found in every “EDGE” model, and every E4 model uses a DC off set music sensing system to activate the ATO (Auto Turn On).

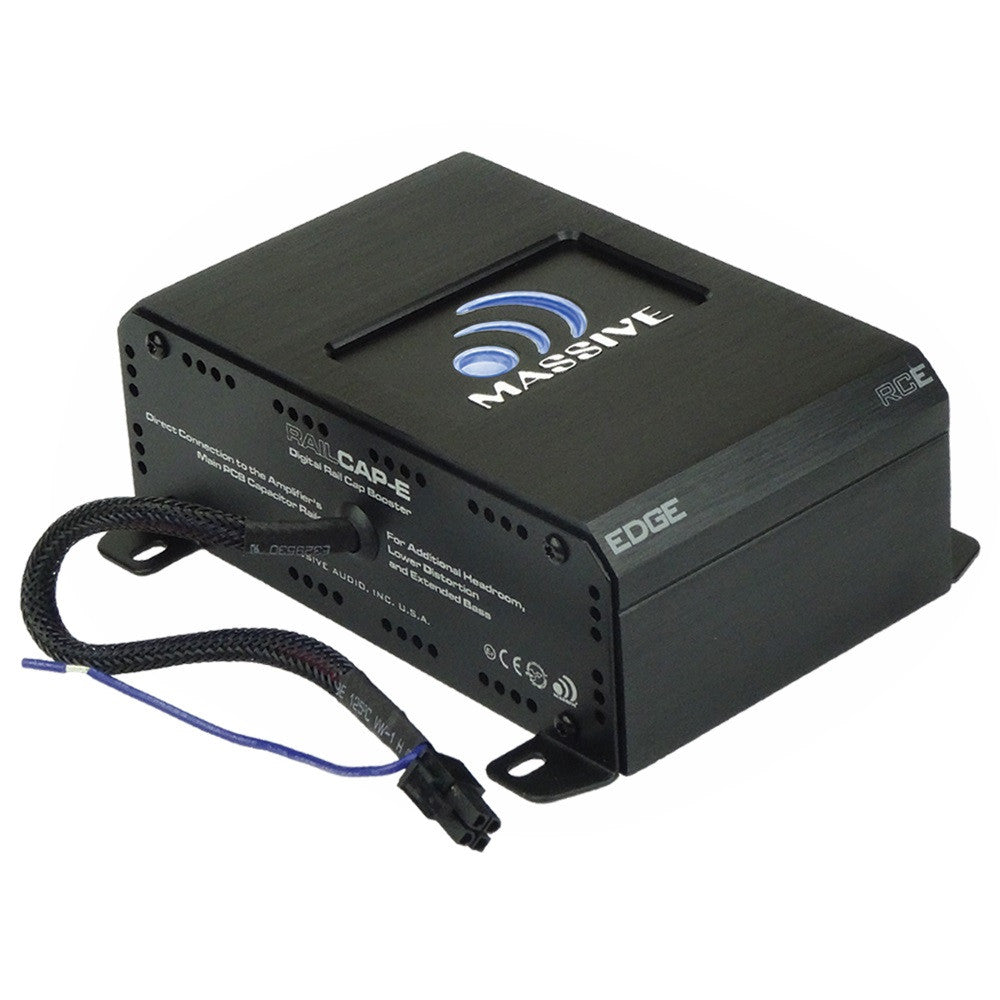

Other new precision audio features found in all mono models include, an adjustable 1 band parametric EQ with up to 12 Db bass boost, a switchable 12V Out terminal, a preparatory docking input for optional custom matching Massive Audio 4 farad “Rail CAP E” capacitor and on all 2, 4 & 5 channel amp crossovers adjusts to an X10 switch which means that “EDGE” can be programmed as a high pass or a low pass at 3K Hz adjustable Up or Down or even Band Passed enabling the use with raw drivers for more output control.
Remember: Massive Audio “EDGE” is Very Sharp and should be played with caution!
|RMS Power||1400w x 1|
|PEAK Power||2800w x 1|
|RMS @ 2 Ohms||700w x 1|
|Min Impedance||1 Ohm|
|Min Ohm Bridged||n/a|
|THD||<0.3% @ 4 Ohm|
|Max RCA Voltage||5v|
|Freq. Response||10Hz - 220Hz|

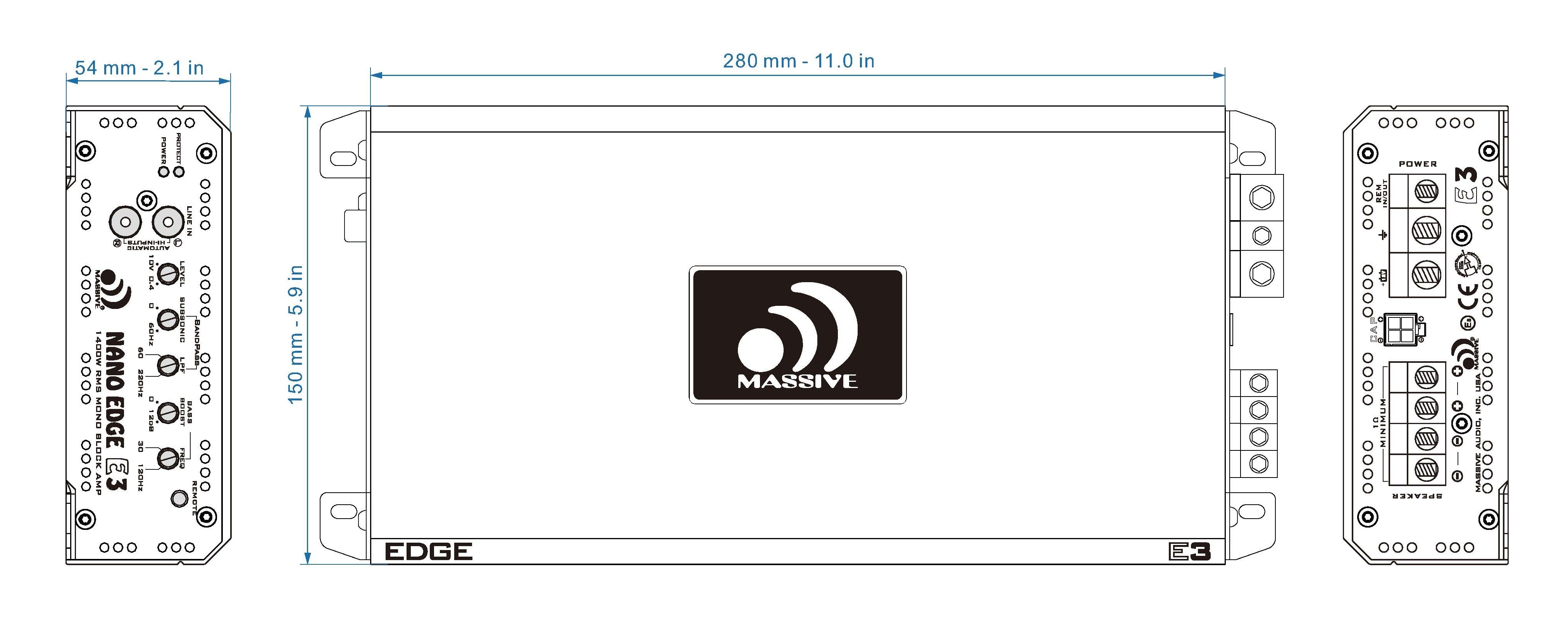

|Dimensions||11.1 (in) x 5.9 (in) x 2.1 (in)|
|Bass Remote||UR1 (Optional)|
Would this amp be appropriate for a single Hippo84?
We would suggest the BP1000.1, E2, BL1, P1200.1 as the most appropriate amplifiers for a single HIPPO84
What sizes are the terminal screws on this amp
T 6 for the power
T5 for the speakers
auto sensing is killing me in the seconds after shut down radio off 3 seconds later amp shuts down but i get a thump from subs when it powers down how do i stop this
ATO only works with a speaker level input. When used, the 12V turn on lead becomes a 12V out. DO NOT USE BOTH! If you are using "speaker level" in do not use the 12V turn on lead unless you want to turn "ON" something else. On some NEWER cars the ATO can be fooled. Please see this link for the wiring diagram to download showing how to wire in the "UW-1" ATO adapter & a link to our web site showing the UW-1. https://cdn.shopify.com/s/files/1/0658/1297/files/Massive_ATO_Mod_AMPS.pdf?11689002838652807025 / https://www.massiveaudio.com/collections/accessories/products/uw-1-universal-rca-adapter .
The "POP" in the woofers is due to the radio turning off before the sub amp does or a bad ground. Here is a link to the manual. https://cdn.shopify.com/s/files/1/0658/1297/files/nano-edge-series-manual.pdf?16286163160951521476
