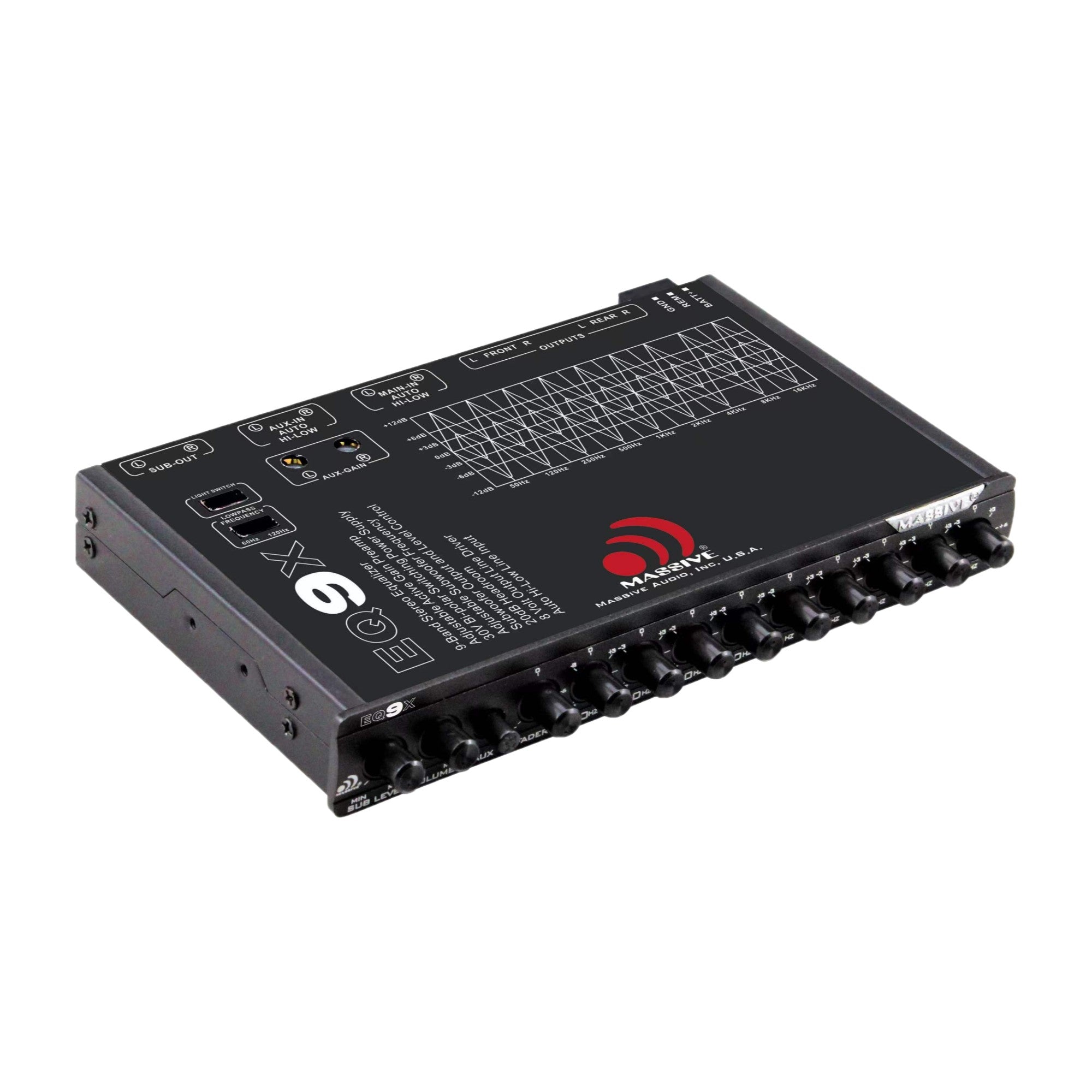

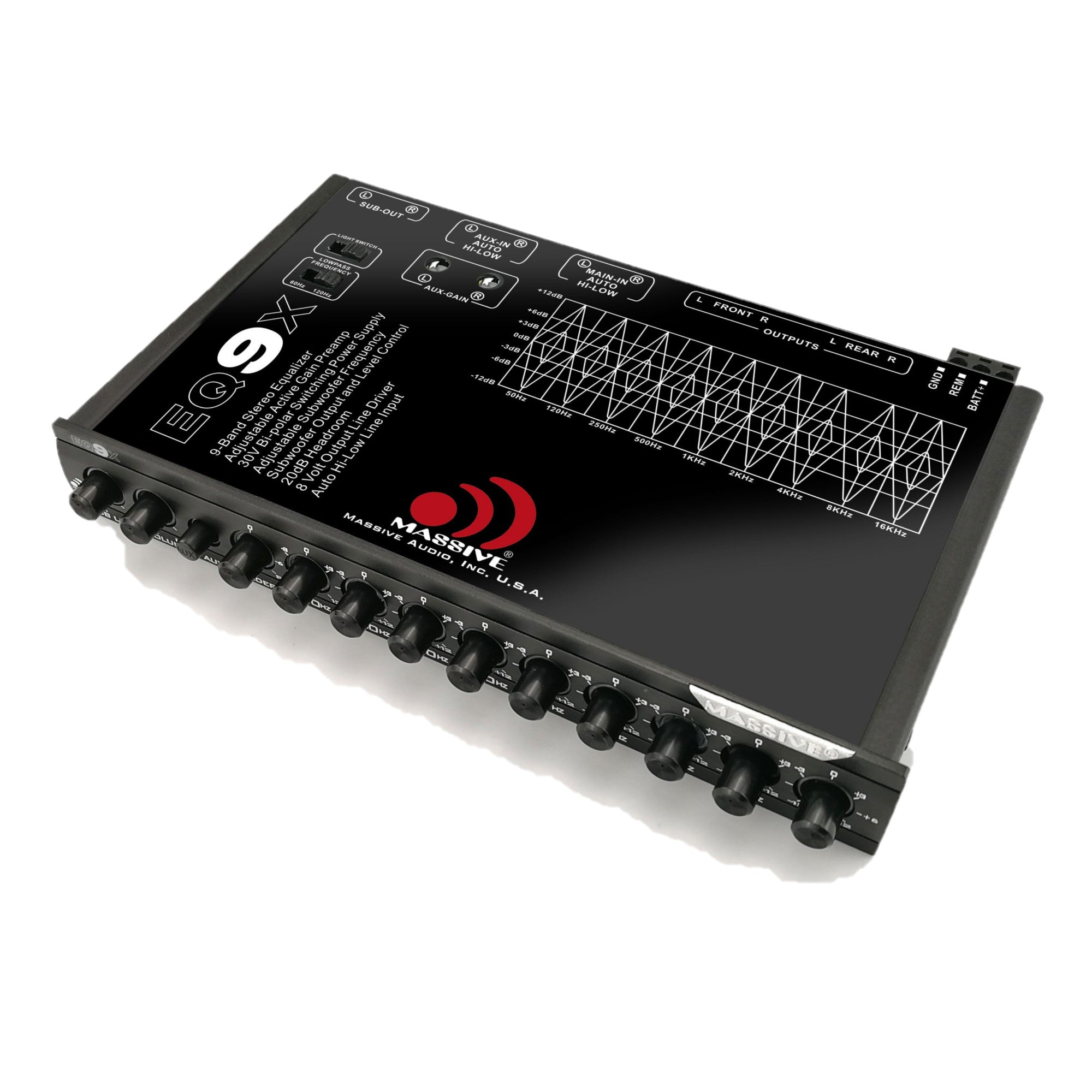

EQ9X - 9 Band Car Audio Graphic Equalizer
EQ9X - 9 Band Car Audio Graphic Equalizer
EQ9X - 9 Band Car Audio Graphic Equalizer
SKU: EQ9X

EQ9X - 9 Band Car Audio Graphic Equalizer

Sale price$ 79.99

EQ9 Manual
  • 1/2 DIN
  • 9 Band Graphic Equalizer
  • Gold Plated RCA Connectors
  • Frequency Response: 10Hz ~ 50Hz =/-1dB
  • Center Freq: 50Hz, 120Hz, 250Hz, 500Hz, 1KHz, 4KHz, 8KHz, 16KHz
  • Each Frequency Adjustable From -12dB to +12dB
  • * -15dB to +15dB for Subwoofer Frequencies
  • Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz
  • 8 Volt Output Line Driver
  • RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone
  • 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)
  • Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs
  • Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N
  • Adjustable Master Volume Level Control
  • Adjustable Active Gain Preamp
  • 30V Bi-Polar Switching Power Supply
  • 20dB Headroom
  • Adjustable Subwoofer Level Control
  • Input Impedance 20K Ohms
  • Output Impedance 2K Ohms
  • Stereo Separation 82dB / 1KHz
  • Operating Voltage 11V - 15V Negative Ground
  • ISO Mounting Holes / Removable Trim Ring
  • Switchable LED from orange to soft blue to match interior lighting
  • 2-Channel RCA Input with Adjustable Gain
  • Dimensions: 7"(W) " 1"(H) " 4 1/8"(D)
