SOLD AS EACH

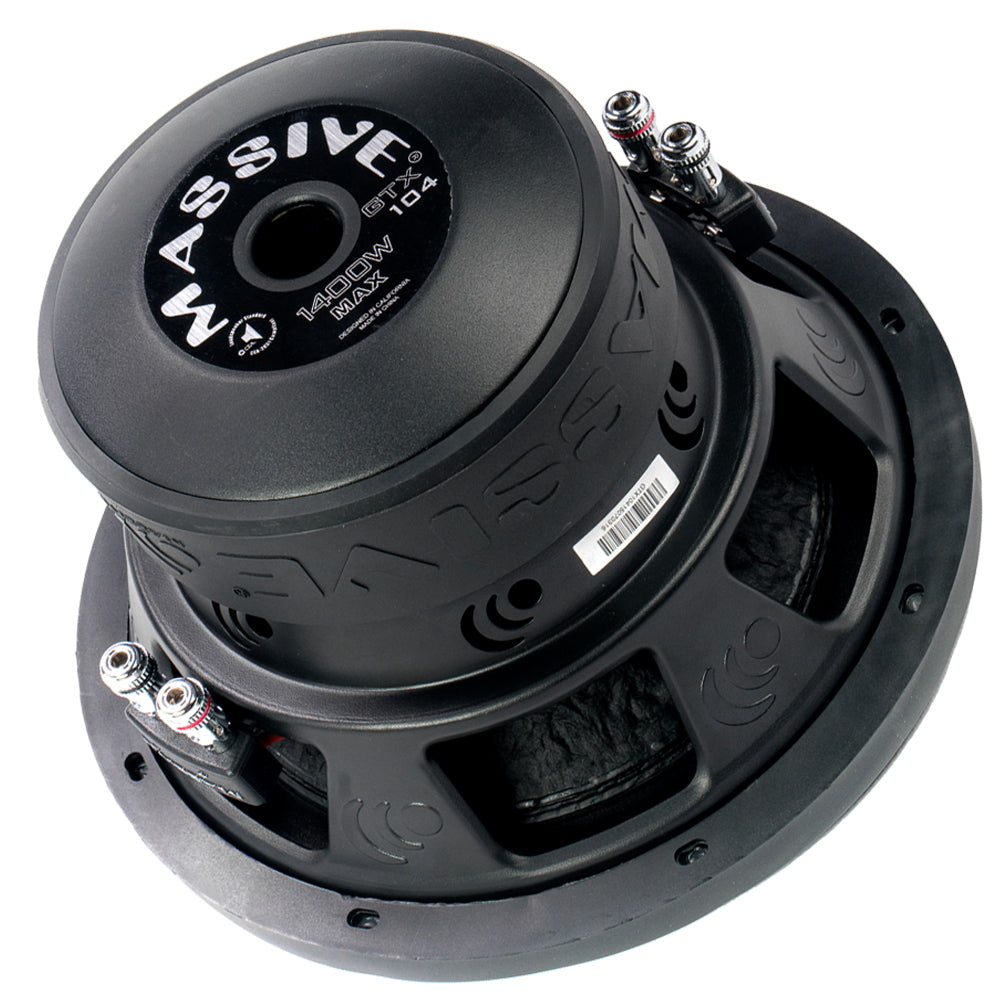

Our GTX Series subwoofers are rated at 250-1000 watts RMS / 500-2000 watts MAX power with a 1.5-2.5" voice coil configured for dual 2/4 ohm impedance. All GTX subs use tight Red stitching that’s sewn through a UV treated non-pressed paper cone onto a EROM foam surround. Then it’s bonded to a heavy gauge steel basket that’s bolted to double stacked high flux Y30 70-150oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring loaded 5-way binding nickel plated speaker connectors. These woofers scream sound quality and truly represent Massive Audio's commitment to value and performance.
FEATURES:
SPECIFICATIONS:
| Size | 10" |
| Watts RMS | 700 |
| Peak Power | 1400 |
| Cone | UV Treated / Non-Pressed Paper |
| Voice Coil | 2.5" Dual 4 Ohm |
| Surround | EROM Foam |
| Magnet | 120oz |
| Terminals | 5 Way Binding Push Terminals |
| Basket | Heavy Gauge Steel |
| Tinsel Leads | Woven Round |
| X-Max | 15mm + 10mm top plate |
| SPL | 87.5 dB |
| FS | 49.8Hz |
| Ported Box | 11"H x 12"D x 12"W / 7.07 sq. in. Port Area |
| Sealed Box | 0.72 ft3 |
I have two of these subs in a encloser and I’m having a hard time with choosing the right amplifier for maximum performance. Could you please aim me in the right directions to complete my project. Thanks in advance, Jason.
We suggest the E3 Nano Edge Amplifer for 2 of the GTX Dual 4 Ohm Subs...
What's the max airspace for the gtx104 subwoofer.
To best answer your questions please see the user guide (located on the TAB to the left) with all info on displacement and box suggestions. For the best box design please consult with an installer so they can measure your available cab space.
