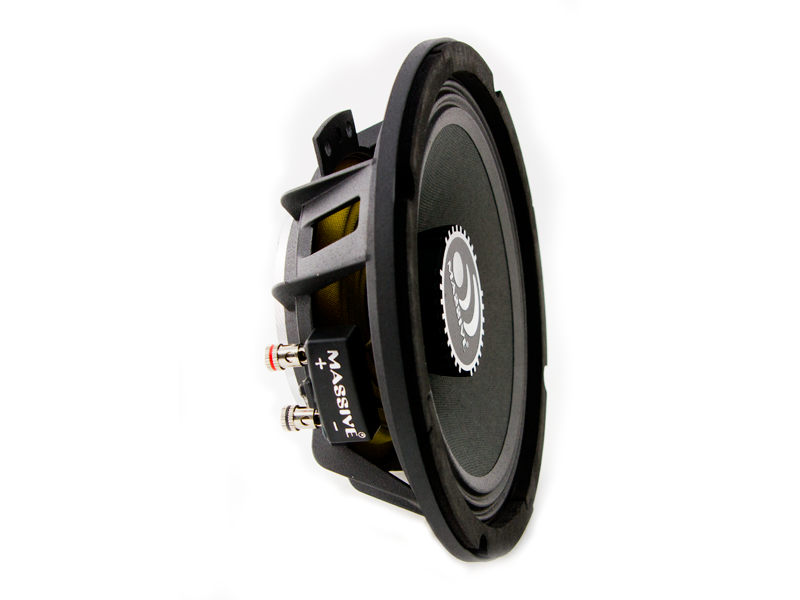

M8S - Mid-Range Shallow Mount Speaker

Massive Audio

*Sold as each not in pairs. Massive Audio"s "MS Series" Shallow Mount Mid-Range Speakers along with its "M Series brethren" are all engineered in the USA to perform at perfectly selected mid-range frequencies with high sensitivity to enhance your listening experience. The "Slim Series" even feature a special aluminum...
$ 134.95
-
+
$ 134.95

Catalog

*Sold as each not in pairs.


Massive Audio"s "MS Series" Shallow Mount Mid-Range Speakers along with its "M Series brethren" are all engineered in the USA to perform at perfectly selected mid-range frequencies with high sensitivity to enhance your listening experience. The "Slim Series" even feature a special aluminum heat sink / neodymium magnet on top of the speaker to help dissipate extra heat helping to keep the voice coils cooler for extended playing time! Slim Series deliver clean high output and will fit into most any restricted spaces courtesy of their high powered neodymium magnet assembly and low profile mounting for any limited space restrictions! Truly Unique, Definitely Massive!

"On a Stage or in a Car Massive Drives it Home!"

FEATURES:

  • Cast Aluminum Basket
  • Kapton Coil Former
  • 1.5" Copper Voice Coil
  • Neodymium Magnet
  • Vented & Extended Core
  • Paper Cone
  • Flat Foam Surround Cone Edge
  • Aluminum Phase Plug / Heat Sink for Heat Dissipation
  • Ultra Shallow 2.83" Mounting Depth

SPECIFICATIONS:

Nominal Basket Diameter 8.3", 210mm
Nominal Impedance 4 Ohms
RMS Watts 140 W
Music Program 300 W
Resonance 100 Hz
Usable Frequency Range 100Hz-7KHz
Sensitivity 98 dB
Magnet Weight 2.1 oz
Gap Height 0.24", 6mm
Voice Coil Diameter 1.5”, 38.5mm
Resonant Frequency (fs) 138 Hz
DC Resistance (Re) 2.6
Mechanical Q (Qms) 0.603
Overall Diameter 8.3", 210mm
Mounting Holes Diameter 0.22", 5.5mm
Mounting Holes B.C.D. 7.72", 196mm
Depth 2.36", 60mm
Basket Materials Cast Aluminum
Cone Composition Paper Cone
