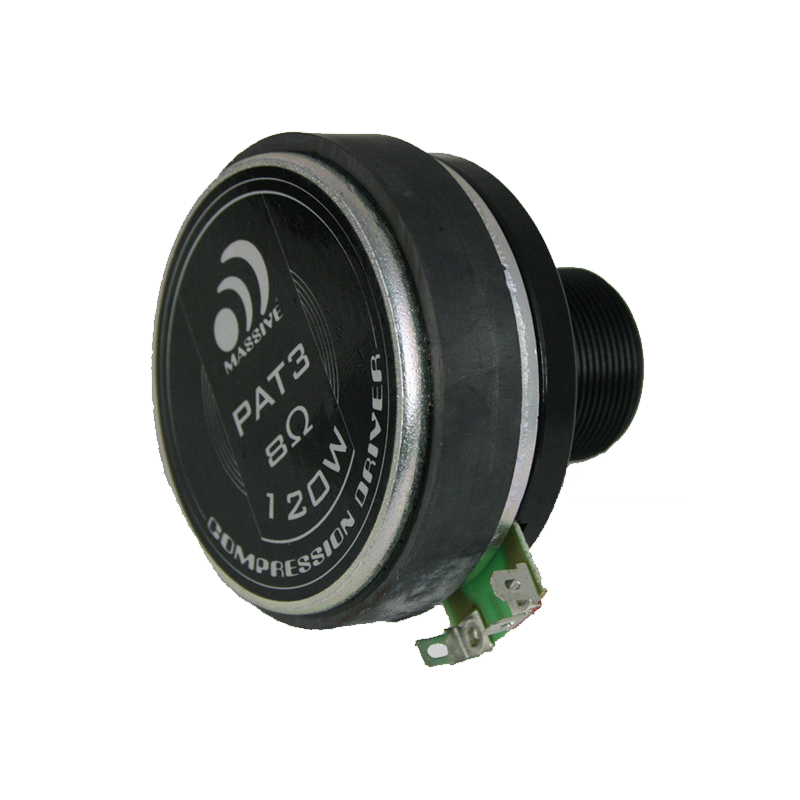

PAT 3 - Compression Driver

Massive Audio

*Sold as each not in pairs. *Flare Horn not included.* The PAT 3 is a 1" exit Screw-On High Power Super Tweeter that possesses high sensitivity and is built for high frequency applications with excellent stiffness and dampening. These drivers feature Ferro Fluid cooled voice coils for increased power...
$ 37.95
-
+
$ 37.95

Catalog

*Sold as each not in pairs. *Flare Horn not included.*

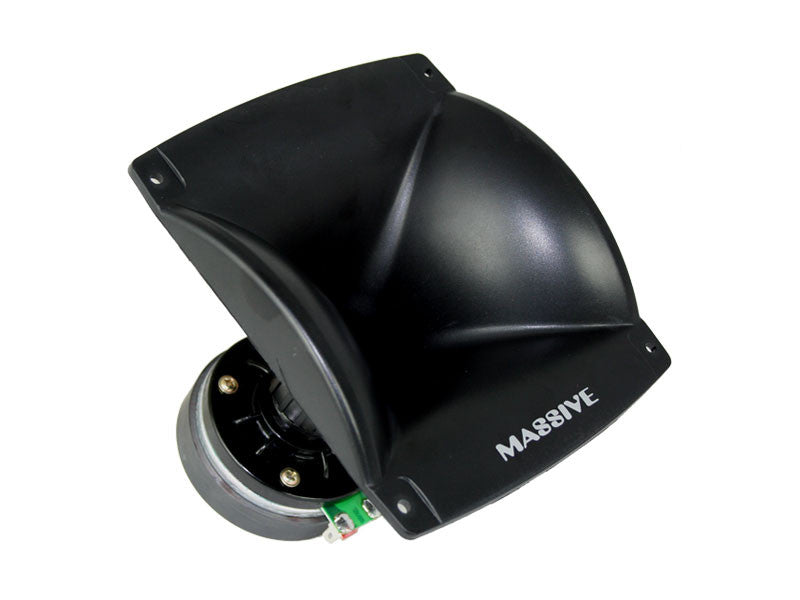

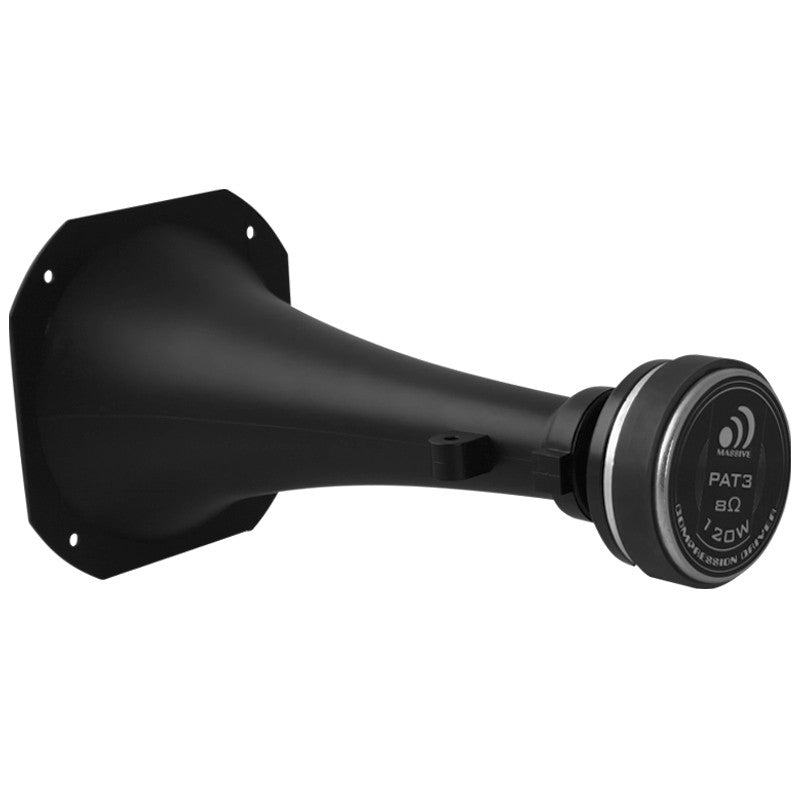

The PAT 3 is a 1" exit Screw-On High Power Super Tweeter that possesses high sensitivity and is built for high frequency applications with excellent stiffness and dampening. These drivers feature Ferro Fluid cooled voice coils for increased power handling and controlled frequency behavior. Use in combination with our F3 Horns and M Series Drivers for excellent full range applications for car or stage.

"On a Stage or in a Car Massive Drives it Home!"

FEATURES:

  • 1" Screw On
  • Bolt On
  • 25.5mm CCAW Voice Coil
  • Ferro Fluid Cooled
  • High Grade Ferrite Magnet
  • Recommended 18dB Crossover
  • Field Replaceable Voice Coil

SPECIFICATIONS:

Impedance 8 Ohm
Frequency Range 1.5K - 20KHz
RMS Power/AEC 30 watts
Max Power 60 watts
Peak Power 120 Watts
Sensitivity 108 dB 2.83v@1m
Mounting Type Screw On 1 3/8"
