T4 - 2000 Watts 1 RMS @ 1 Ohm Mono Block Marine Amplifier
- Manuals & Downloads
- SHIPPING & RETURNS

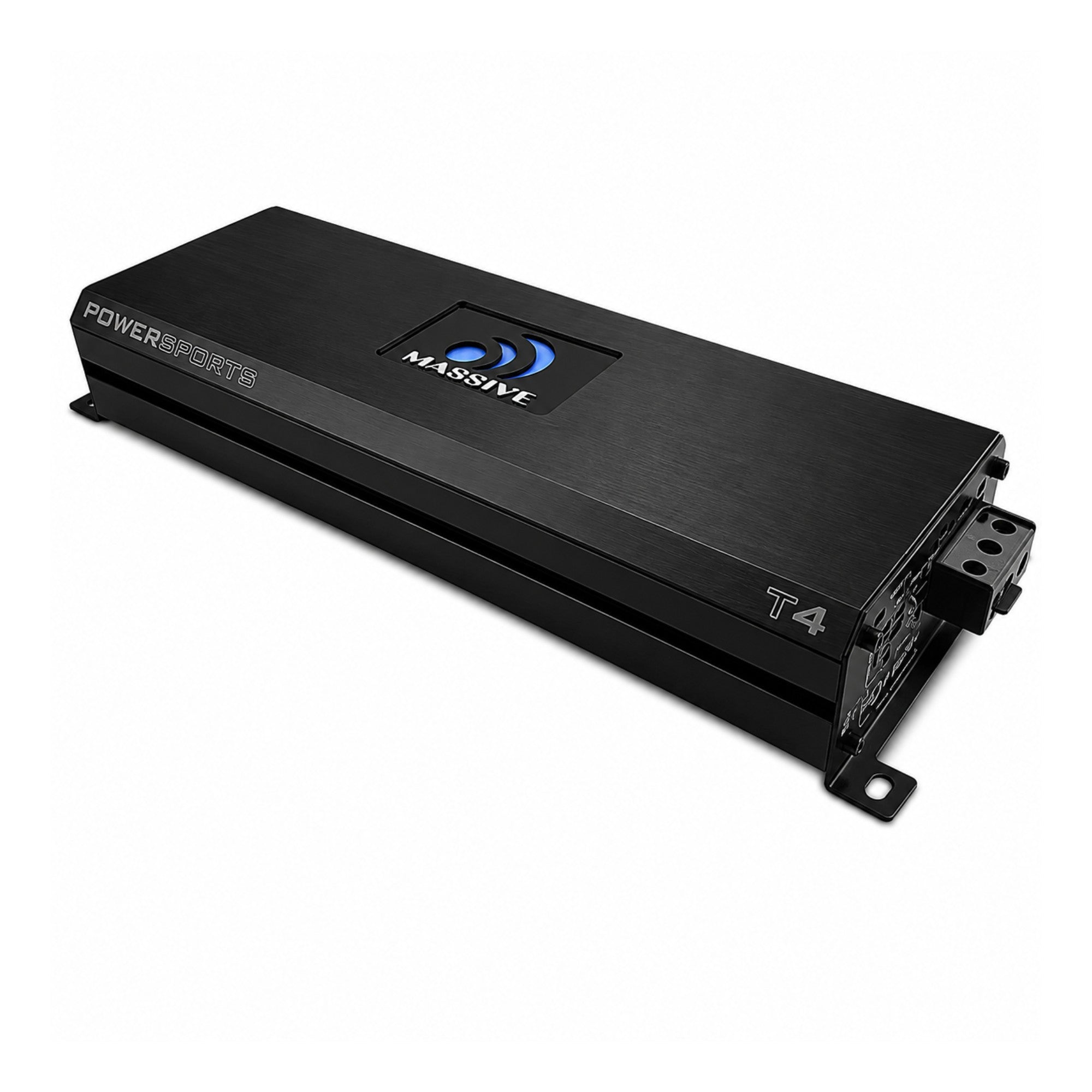

Massive Audio’s TRIDENT Series Amplifiers come dressed for action in their black anodized brushed aluminum heat-sink, punctuated with stainless-steel end caps and a blue backlit logo. Its dimensions are 4.25” W x 1.6” H x 13" L, making it both Powerful and diminutive. This 1 Ω stable Mono Block is rated at 2000 Watts X 1Ω and is Water Resistant as a result of its Dura-Coated 320°F Epoxy PCB.
Inside you will find a 4 Layer PCB of Class D design including Surface Mounted parts. Like all Massive Audio Amplifiers, you’ll find our advanced 5 Way Protection Circuitry and a full array of adjustments to adapt to any system configuration. One example is the -3 ~ + 12DB Variable Bass Boost from 40 Hz - 100 Hz. The built-in OEM line converter can handle signals up to 9 volts to activate the Auto Turn On feature eliminating the need for a separate turn on wire.
When this ATO is used the 12 volt input converts to a 12 volt output that can activate additional system devices when necessary. The T3 also has a "Docking Port" to plug in an optional Railcap Booster (RCLX) or RCT. An optional Remote Gain control (UR1) is available for purchase.
- Extreme Power in a Mini Compact Footprint
- Conformal Coated PC Board to Resist Moisture, Dust and Extreme Heat
- 1 Ohm Stable Design
- 4 Layers PCB design with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High Grade Switching Devices
- Built-in Auto Sensing Turn On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Inputs)
- -3 ~ + 12DB Variable Bass Boost 40 Hz - 100 Hz
- Advanced 5 Way Protection Circuitry
- RCLX ~ Railcap Booster (Optional)
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
|Peak Output Power @ 14.4V||4000W Max Mono|
|1 Ohm RMS||2000w X 1|
|2 Ohm RMS||1000W x 1|
|4 Ohm RMS||500w x 1|
|4 Ohm Bridged||N/A|
|THD at 4 Ohm Load 30% Rated Power||<0.03%|
|Minimum Load||1 Ohm Mono|
|Gain Remote||UR1 (Optional)|

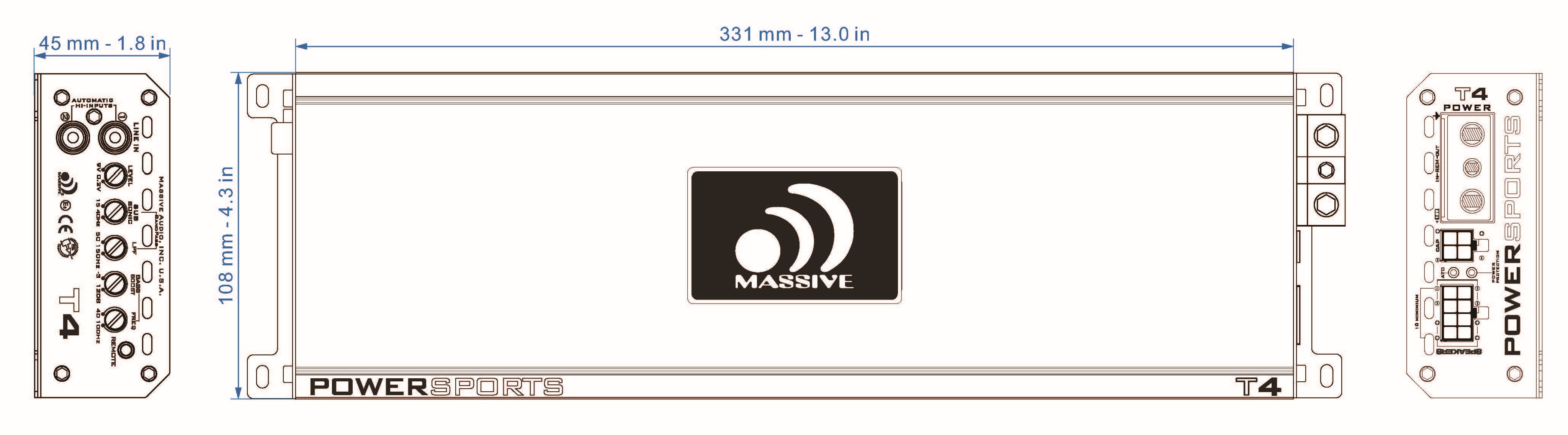

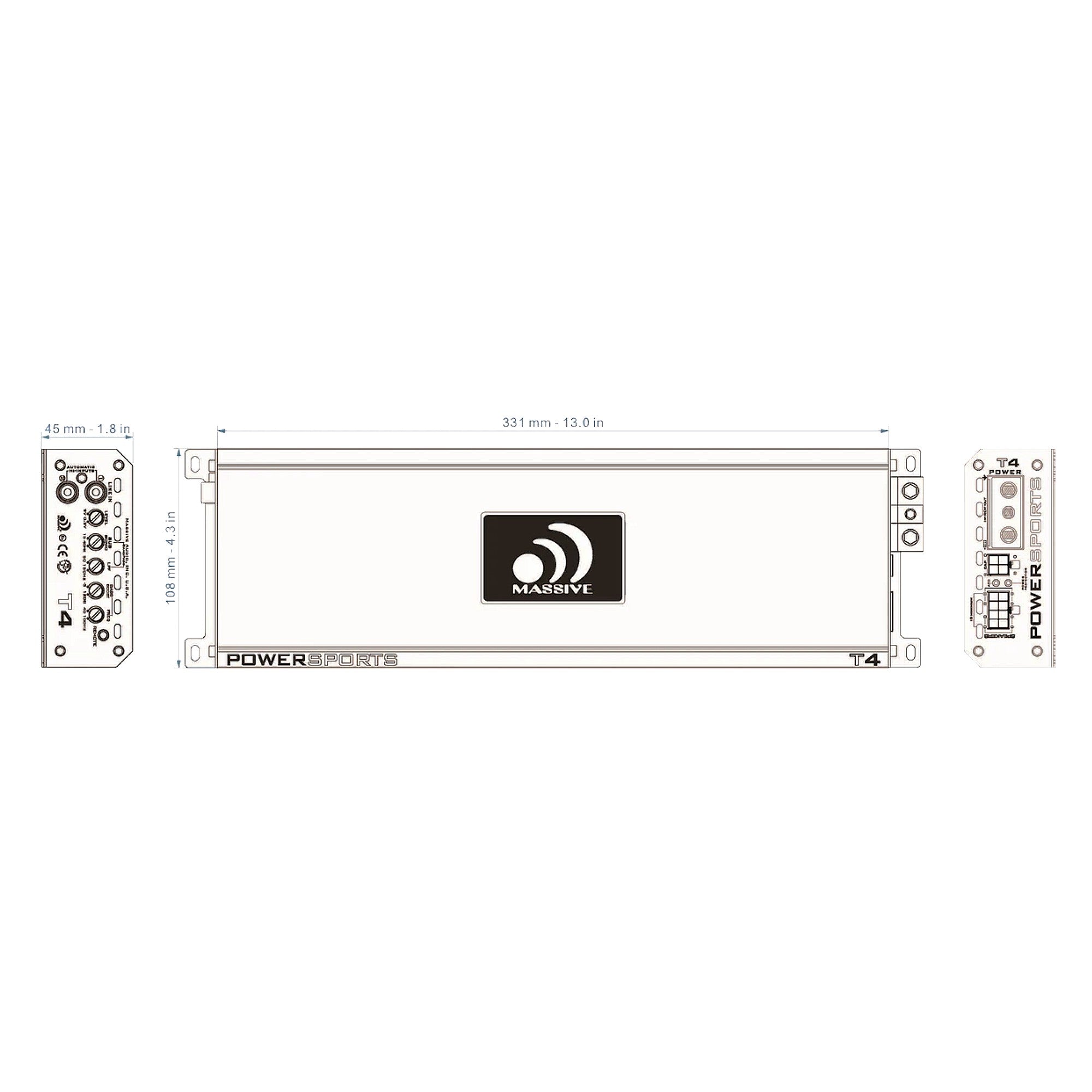

|Dimension||1.6"H x 4.25"W x 13.00"L|
